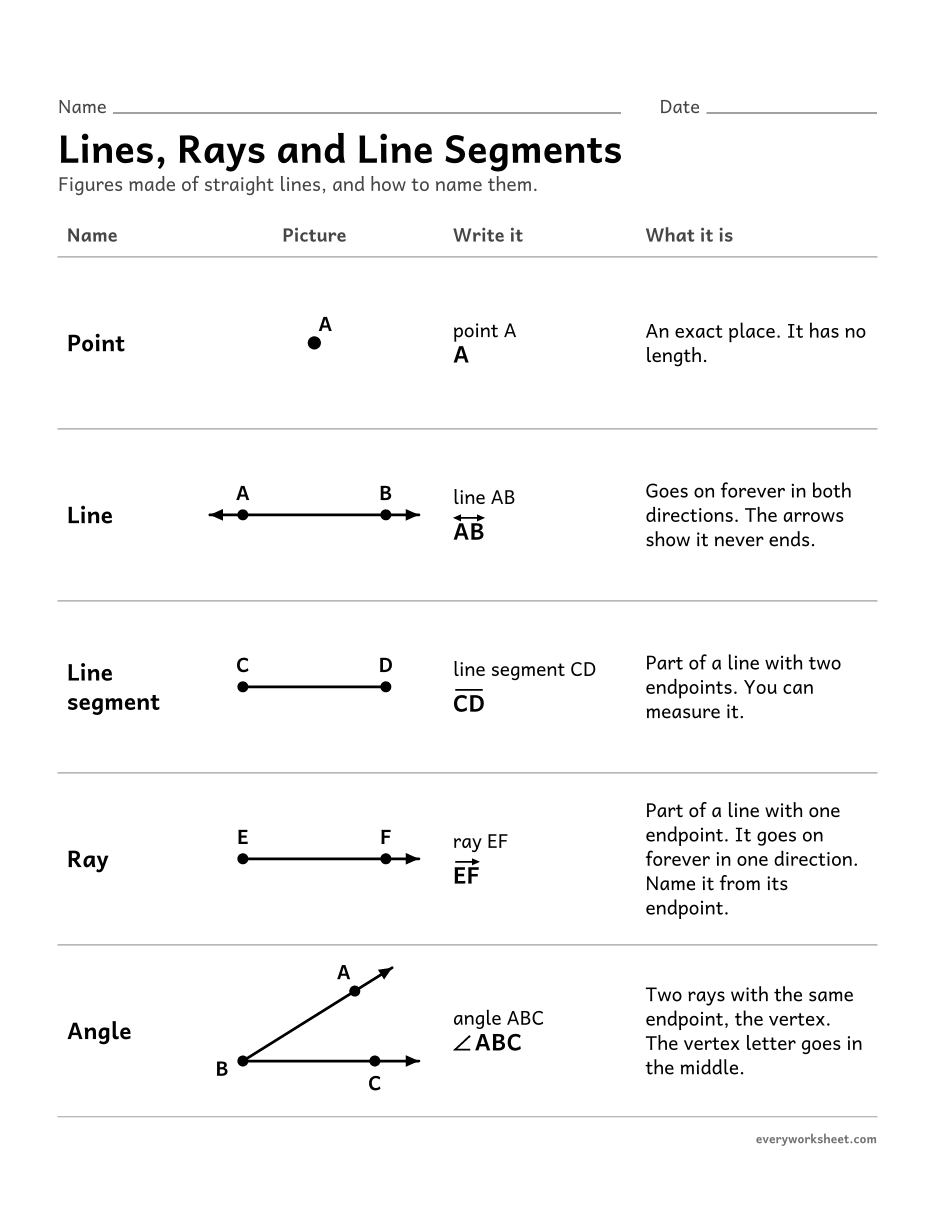

View largerLines, rays and line segments
Points, lines, line segments, rays and angles: how they look, how to name them and the symbols
1 page33 KB
Lines, Rays and Line Segments Worksheets
Points, lines, line segments, rays and angles: a chart with symbols, naming, drawing and finding them in a figure. With answer keys.
Download the lines, rays and line segments worksheets
Points, lines, line segments and rays
View larger

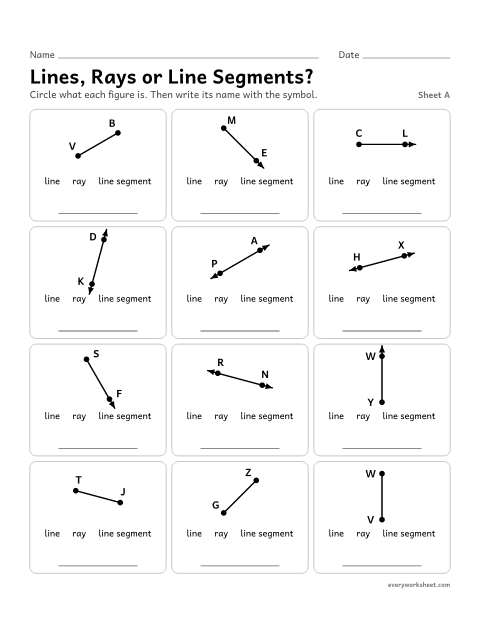

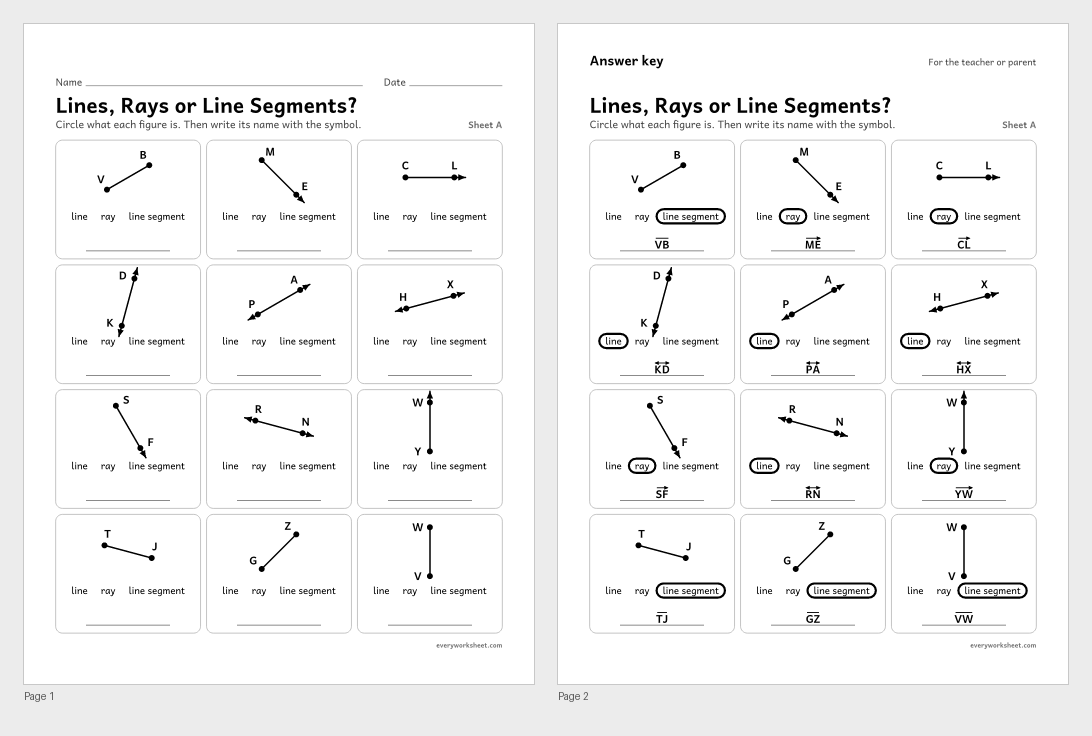

View all 2 pagesLines, rays or line Segments?, sheet A
Telling lines, rays and line segments apart and naming each one with letters
Answer key on page 2
2 pages41 KB

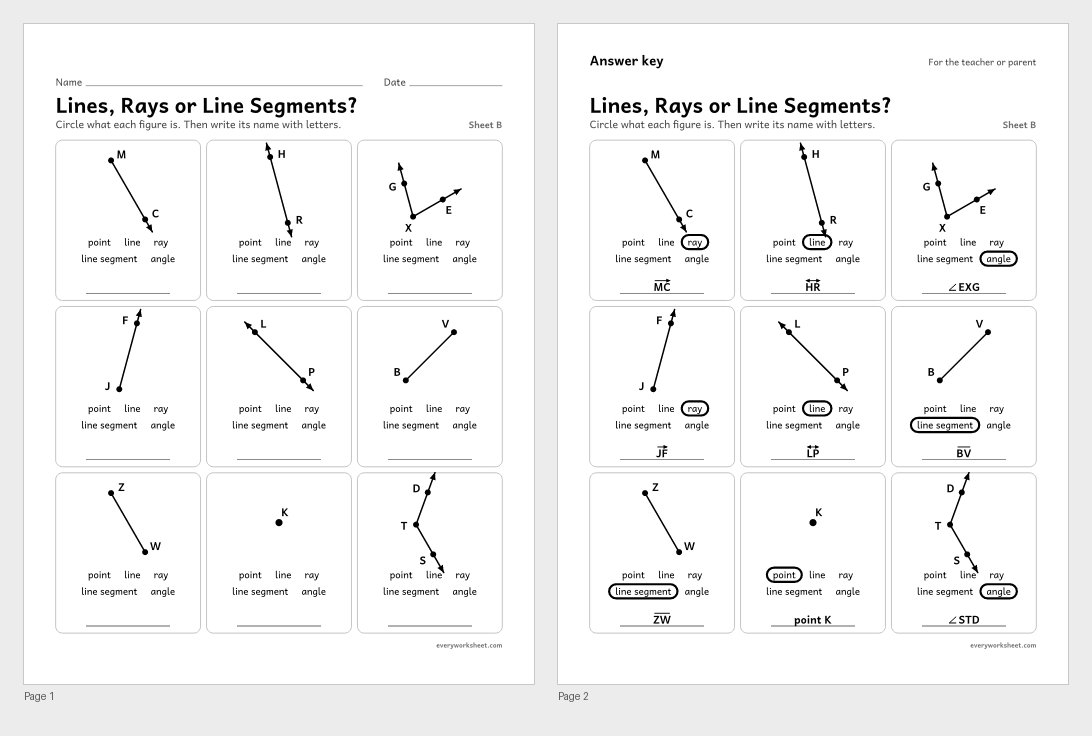

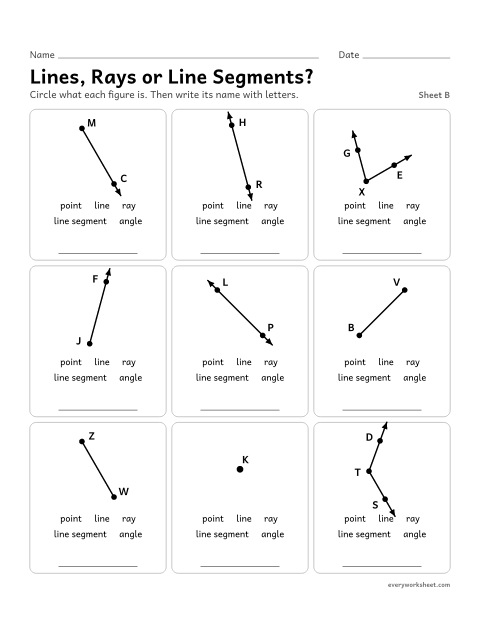

View all 2 pagesLines, rays or line Segments?, sheet B
Naming points, lines, rays, line segments and angles and writing their names with letters
Answer key on page 2
2 pages39 KB

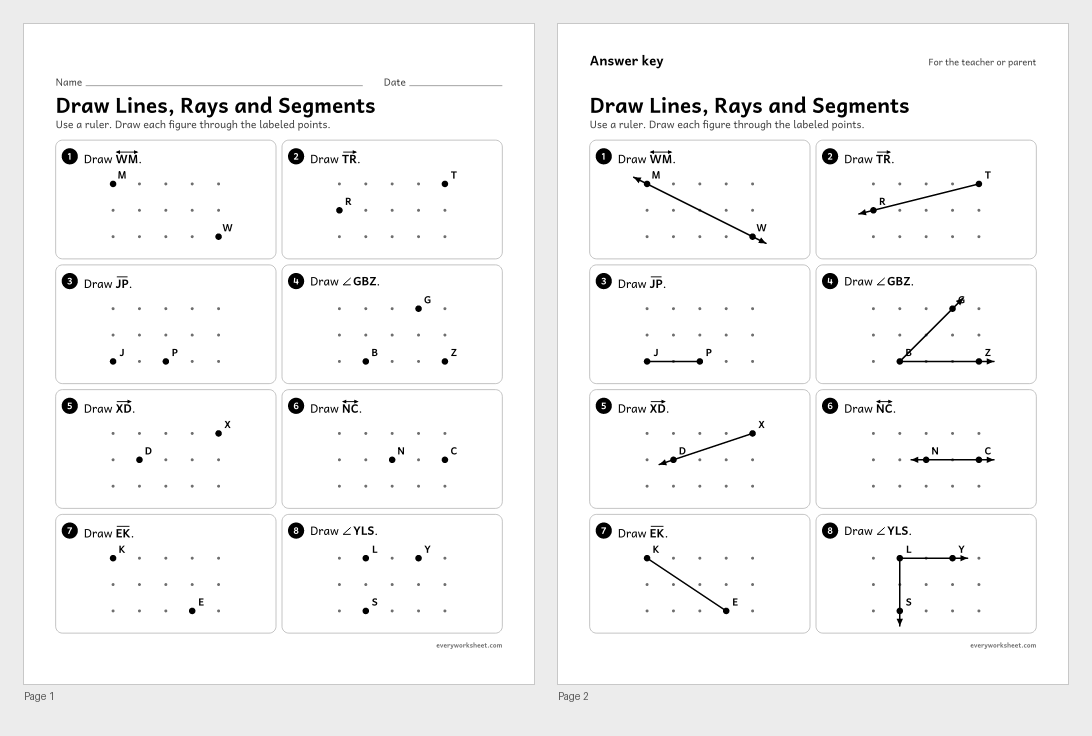

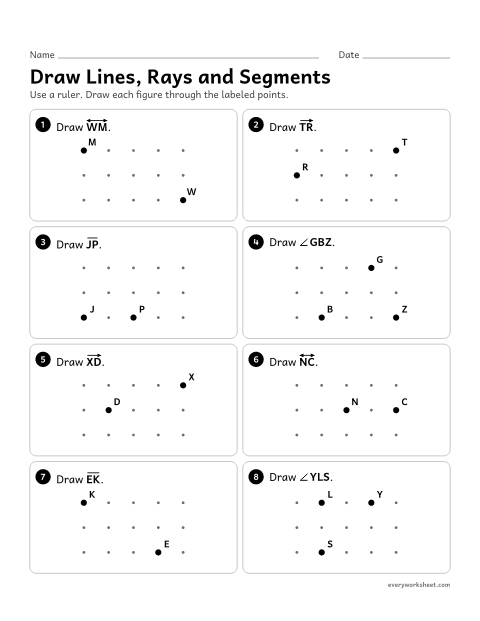

View all 2 pagesDraw Lines, rays and segments
Drawing lines, rays, line segments and angles through labeled points with a ruler
Answer key on page 2
2 pages41 KB

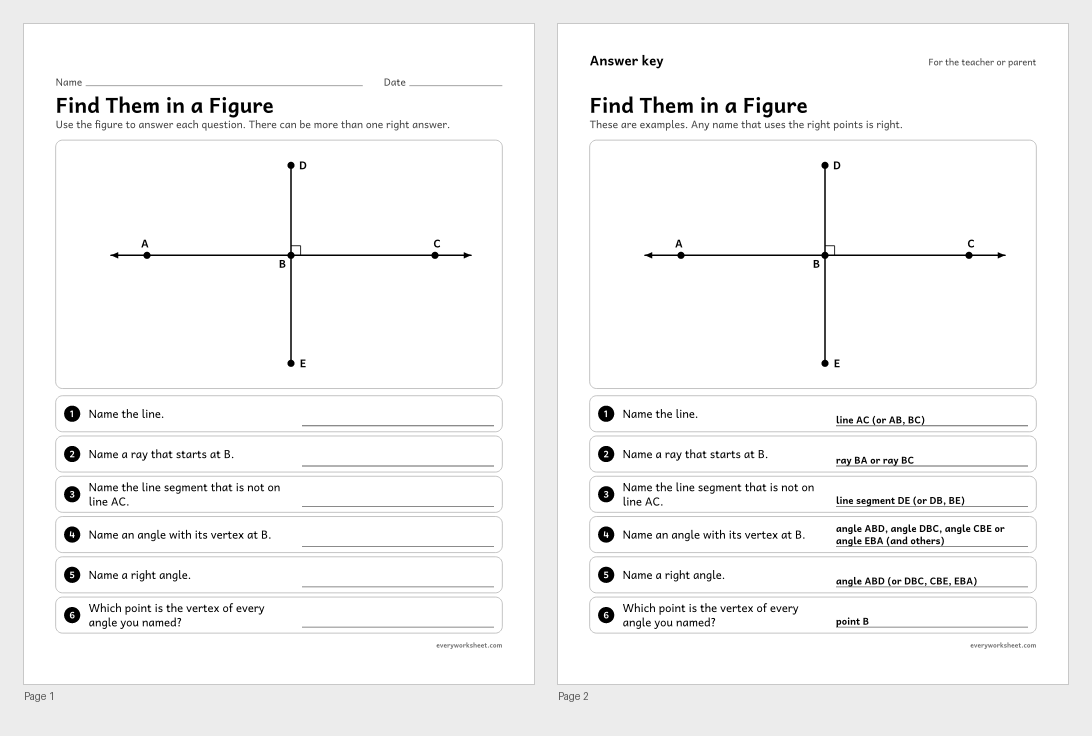

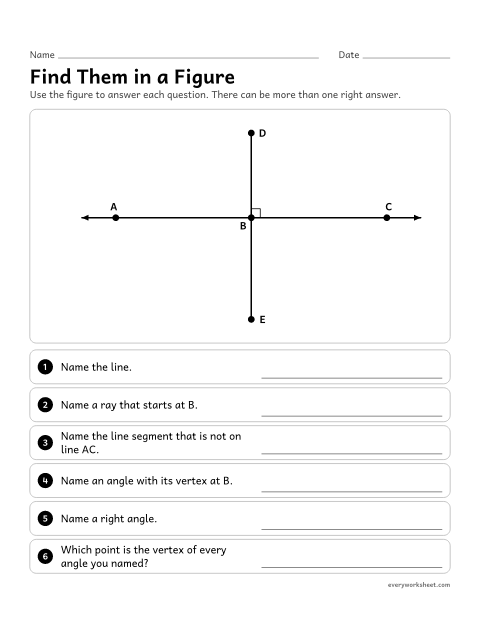

View all 2 pagesFind them in a figure
Finding and naming lines, rays, line segments and angles in one figure
Answer key on page 2
2 pages40 KB
Print at 100% (actual size) for the cleanest tracing lines.
About these lines, rays and line segments worksheets
A line goes on forever in both directions and is drawn with an arrow at each end. A line segment is part of a line with two endpoints, so it can be measured. A ray has one endpoint and goes on forever in one direction. An angle is two rays that share an endpoint.
Each one is named with letters for its points. Line AB is written with a two-headed arrow over AB, line segment CD with a bar over CD, and ray EF with an arrow over EF. A ray is always named from its endpoint first. In angle ABC, the vertex B goes in the middle.
These worksheets start with a chart, then naming figures, drawing them through labeled points with a ruler, and finding them in one figure. Every practice page has an answer key.
Standards
CCSS.MATH.CONTENT.4.G.A.1Draw points, lines, line segments, rays, angles (right, acute, obtuse), and perpendicular and parallel lines. Identify these in two-dimensional figures.
How to use them
- Teach from the Lines, Rays and Line Segments chart.
- Use Sheet A, then Sheet B, which adds points and angles.
- Use Draw Lines, Rays and Segments with a ruler.
- Finish with Find Them in a Figure.
Teaching tips
- Ask: how many endpoints? Two is a segment, one is a ray, none is a line.
- Ray AB and ray BA are different rays.
- Line AB and line BA are the same line.
Questions teachers and parents ask
What is the difference between a line, a ray and a line segment?
A line has no endpoints and goes on forever both ways. A ray has one endpoint and goes on forever one way. A line segment has two endpoints.
How do you name a ray?
Start with its endpoint, then any other point on it: ray EF starts at E and goes through F.
